electric motor 15kw

Why is the 15 kW Electric Motor a Key Choice?

In the complex and competitive world of modern industry, where every kilowatt-hour of energy and every minute of downtime matters, the 15 kW electric motor is recognized as one of the main pillars of industrial drives. This balanced power (approximately equivalent to 20 HP) provides the most optimal intersection between the power required to start important industrial machines and the smart management of energy costs.

An incorrect choice in this power range can lead to decreased efficiency, premature wear, and increased maintenance costs. In this professional guide from the JEMCO Industrial Group, we go beyond a simple introduction to help you make a fully informed decision in accordance with the highest operational standards (such as the JEMCO 15 kW electric motor models) by deeply understanding technical specifications, efficiency classes (IE), and available RPM types. Stay with us to guarantee the stable and optimal performance of your equipment.

Outstanding Advantages of 15 kW Electric Motors

The 15 kW electric motor brings several advantages to industrial businesses due to its specific characteristics:

• Power and Consumption Balance: These motors provide an optimal balance between the torque required for industrial equipment (such as medium pumps and fans) and operational costs.

• High Reliability: In high-quality and standard models, including JEMCO products, the robust structure and durable components guarantee long life and uninterrupted operation.

• Versatility in Application: From small industries and workshops to non-critical sectors of large industries, this power range can be installed and used in a wide range of devices.

• Ease of Maintenance: Due to their relatively standard structure, their maintenance and repair processes are less complex compared to very large motors.

Widespread Applications of 15 kW Electric Motors in Various Industries

15 kW electric motors are used as workhorses in many industrial processes. Here are some of their most important applications:

Important Note: In hazardous environments such as refineries or chemical industries, it is essential to use explosion-proof electric motor models with this power rating to fully comply with safety standards.

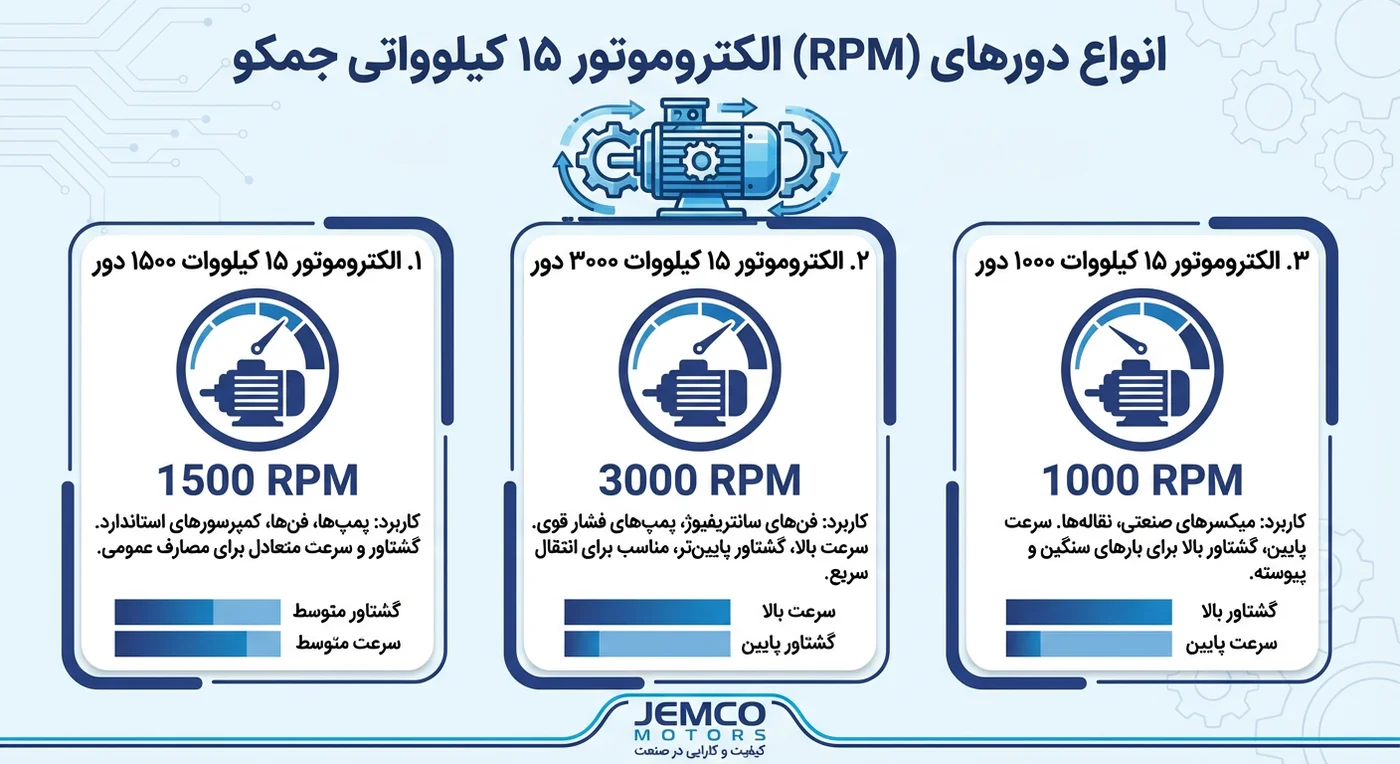

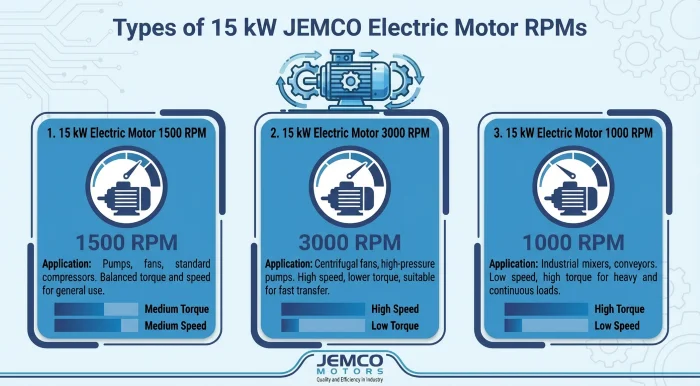

Types of RPM for JEMCO 15 kW Electric Motors

One of the most important factors in choosing a 15 kW electric motor is the rated speed or revolutions per minute (RPM), which is directly dependent on the number of motor poles. JEMCO produces this power in three standard and widely used speeds to cover various industrial needs:

1. 15 kW 1500 RPM Electric Motor

This model is the most widely used and balanced type. 1500 RPM (nominal 1450 RPM) creates an ideal balance between high speed and torque and is suitable for a wide range of industrial equipment such as pumps, air compressors, medium fans, and general conveyors that require stable and continuous performance.

2. 15 kW 3000 RPM Electric Motor

These motors, with the highest speed (nominal about 2900 RPM), are designed for applications requiring very fast mechanical output. This model is often used in high-flow centrifugal fans, high-pressure water pumps, and some specialized equipment where speed is the main priority.

3. 15 kW 1000 RPM Electric Motor

6-pole motors (nominal about 980 RPM) are optimized to create higher torque at lower speeds. These models are the best choice for loads that require strong rotational force and smooth starting, such as industrial stirrers (mixers), mills, and equipment that operates by connecting to a gearbox.

To view the full range of products suitable for your needs, you can use the Buy AC Electric Motor link to access the full variety of JEMCO products.

Key Technical Specifications in Selecting a 15 kW Electric Motor

To ensure optimal performance, it is necessary to pay attention to the following technical indicators when buying a 15 kW electric motor:

Energy Efficiency Standard (IE)

Motor efficiency (Efficiency Class) is a determining factor in long-term power consumption and operational costs. These standards are classified as follows:

Ingress Protection (IP)

The degree of protection or IP (Ingress Protection) indicates how resistant the motor is to the entry of solid objects (like dust) and liquids (like water). A standard industrial 15 kW electric motor often has IP54 or IP55.

• IP55: Complete protection against dust and water splashing from any direction.

• IP65: Complete protection against dust and high-pressure water jets. (Suitable for washdown environments).

Frame Size

The frame size (usually specified by letters and numbers on the motor nameplate) determines the standard and mounting dimensions of the motor. For a standard IEC 4-pole 15 kW electric motor, the frame size is usually 132 to 160 mm. Precise matching of the frame with the mounting base and flange is vital.

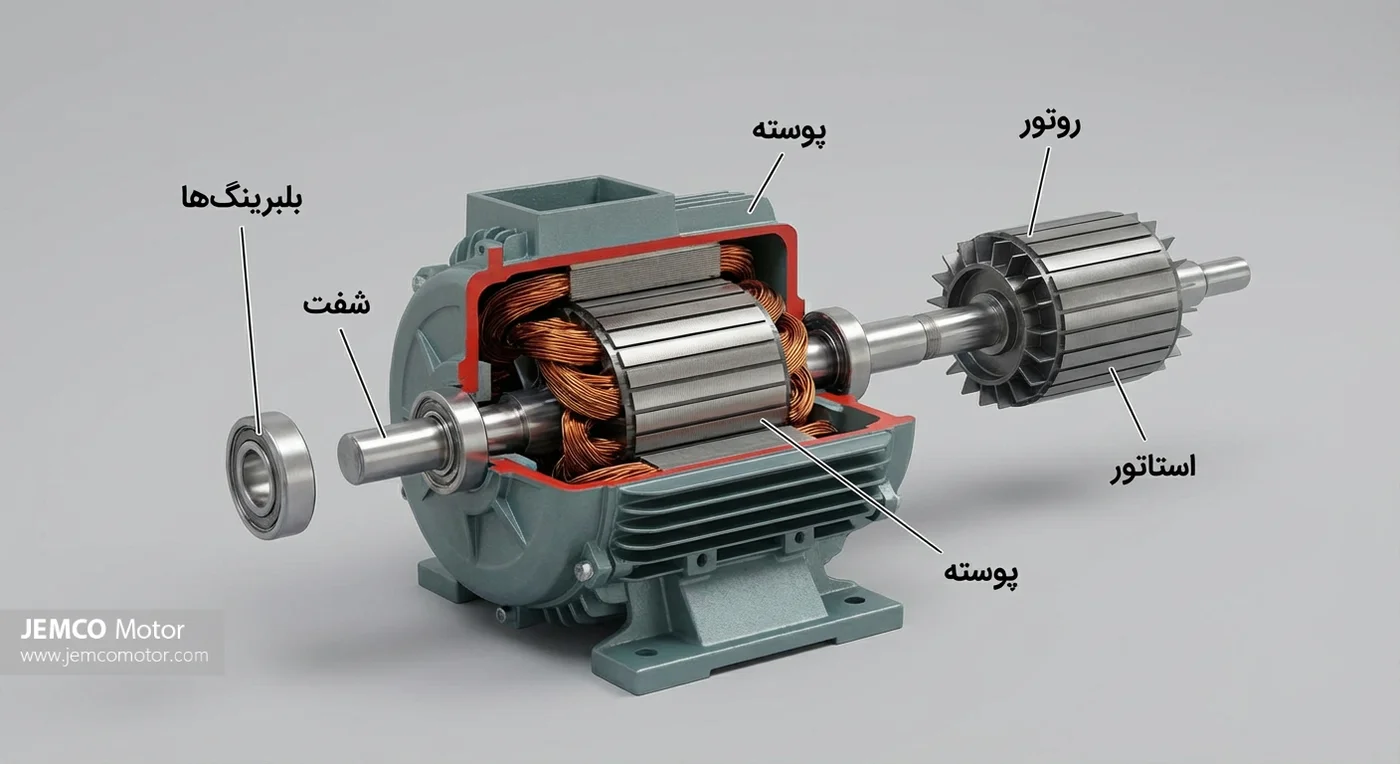

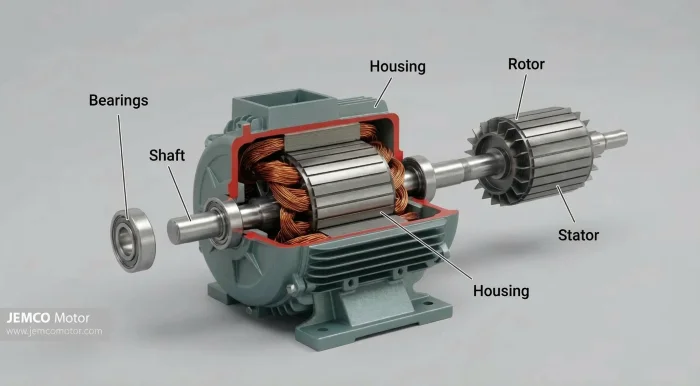

Main Components and Structure of the Electric Motor

A three-phase 15 kW electric motor consists of the following main components:

1. Stator: The stationary part of the motor that includes the main windings and creates the rotating magnetic field.

2. Rotor: The moving part that is set in motion due to the induction of the stator’s magnetic field and rotates the shaft.

3. Frame: The external housing of the motor, often made of cast iron or aluminum, responsible for protecting internal components and dissipating heat.

4. Shaft: The output axis that transmits rotational force to the connected device.

5. Bearings: Used to reduce friction and support the rotation of the rotor.

How to Correctly Select a 15 kW Electric Motor

Optimal selection requires considering the following parameters:

1. Precise Determination of Output Power: Ensure that 15 kW power is sufficient for the required load and that no overload occurs.

2. Choosing the Appropriate RPM: Select based on the machine’s torque and speed requirements (2, 4, 6, or 8 poles).

3. Environmental Conditions: If the working environment is humid, dusty, or hazardous (such as flammable gases), you must use a higher IP or explosion-proof models respectively.

4. Voltage and Frequency: Match the motor voltage and frequency with the factory’s power grid (often 380V and 50Hz in Iran).

15 kW Electric Motor at a Glance

Conclusion

The 15 kW electric motor is a vital investment to ensure productivity and reduce long-term operational costs. By considering factors such as the efficiency standard (IE), required RPM, and ingress protection (IP), you can make an informed choice.

Our expertise at JEMCO is to provide motors produced based on the highest quality standards and optimized for Iranian industrial conditions.
